L38T ELECTRIC TERMINAL TRACTORS
Immediate
Deployment
Proven
Platform
Flexible
Leasing
U.S. Service
& Support
Key Features
Purpose-built electric fleet to meet operations and maintenance requirements of fulfillment centers, shipping ports, train yards, manufacturers, and more.
38T Towing Capacity
114 kWh battery
15 hr autonomy
30-60 min fast charge
80,000lbs GCWR
BluETT L38T — Technical Specifications
Body StyleGAUSSIN Type ATM
Drive Mode4 x 2
G.C.W.80,000 lbs
Overall Length6.253 m
Overall Width2.450 m
Height3.040 m
Platform Height1.110 m
Fifth Wheel Height1.159 m to 1.809 m (low position)
Lifting Stroke0.65 m
Wheel Base Range130 inches
Payload38T
Range (Hours)15.5 hrs @ 100% SOC / 12 hrs @ 80% SOC
Motor2x 55kW Bosch Electric Motors
Horsepower108 HP (80 kW)
Max Torque200 Nm (147 lb/ft.) per motor / 23,600 Nm (17,350 lb/ft.) rear axle
Rated Torque90 Nm (66 lb/ft.) per motor / 5,310 Nm (3,900 lb/ft.) per wheel
Top Speed15 mph (off-road / max posted site speed)
Gradeability16% @ GCW 60,000 lbs / 12% @ GCW 80,000 lbs
Hill Start Assist (HAS)Included
Power SteeringIncluded
EV Voltage Platform400V (Accepted by Amazon)
Charging PowerCapable of 100 kW
Dash Power Outlets(2) 12V · (2) USB-C
Battery TypeNMC
Battery Count4 Modules
Total Capacity114 kWh
Usable Capacity91 kWh (80%) / 114 kWh (100%)
Battery Warranty7 years or 145,600 kWh throughput (1,600 full cycles, 80% SOH)
Lifetime> 5,000 cycles
Emergency Battery Reserve0.2
Low Voltage Battery1x 12V and 1x 24V Starter Batteries
Thermal ManagementLiquid Cooled · Thermal Control Unit · Thermal Cover + Insulation
DC ChargerHigh Power DC via COMBO 1 — compatible with any COMBO CCS charger
DC Charging Time1 hour (0→100%) / 48 minutes (20→100%)
AC Charger1-phase CCS1 Type 1 (NACS optional — separately priced)
Charging Port LocationRear — 12 ft min from rear bumper to port
Charger CompatibilityCOMBO EV Platform (ABB / BTC / Chargepoint)
Charging Port LightIlluminating Light — Included
Charging Indicator LightIncluded
Regenerative BrakingIncluded
Automatic Air Tank DrainIncluded
Brake LampIncluded
Parking Brake + Door Open WarningAudible Warning
Reverse Speed Limit5 mph max
Max Steering Angle40°
Curb-to-Curb Diameter41' 3"
Curb-to-Curb Radius20' 8"
Wall-to-Wall Diameter (w/ mirrors)≈ 45' 10"
Wall-to-Wall Radius (mirrors)25' 3"
Wall-to-Wall Diameter (bumper, no mirror)≈ 44' 10"
Wall-to-Wall Radius (bumper only)24' 3"
Mirror Overhang55"
Measured Test Range60' 1"
Cab SuspensionIncluded
Front and Rear Tow HooksOption
Pintle HookOption
Front TiresPneumatic 315/80R22.5
Rear TiresPneumatic 315/80R22.5
Wheels — Disc Front & RearYes
Protection / SafetyROPS & FOPS Certified (ISO 3471 / SAE J10409) — Tubular Steel
Steering WheelTilt / Telescoping
Door Opening57" x 30"
Factory ACIncluded
Cabin FanOption
Driver's SeatAir Suspended & Adjustable · Heated (Option)
Seat MaterialCloth
Seatbelt3-Point Orange · Audible Warning / Vehicle Immobilized if Not Engaged
Side MirrorsHeated & Motorized Flat Mirrors
Heater / DefrosterIncluded
FloormatPVC
Cup Holder(s)Included
RAM Phone MountIncluded
Reading Light / Dome LightIncluded
Front WiperIncluded
Deck Access GrabhandlesIncluded
Shatter Proof Film on Rear WindowOptional
Digital DashboardCOBO Canview 3 Screen
Electronic Shift SystemIncluded
Keys / IgnitionRotary Ignition Switch (Keyless Start)
Climate ControlAC / Heater
Air Pressure GaugeIn-dash / Display (Compressed Air System Only)
SpeakersIncluded
AudioOption
CB Radio Pre-wireOption
Daytime Running LightsIncluded
Headlamps (High & Low Beam)Included
Front Clearance LampsIncluded
Front Identification / Spot LightsIncluded
Front Side Reflex ReflectorsIncluded
Amber Side Marker LightsIncluded
Side Clearance Lamps (Amber, 4-way)Recommended
Strobe LightOrange Rotating — Top-Center of Vehicle
Rear Flood LightIncluded
Tail LampIncluded
Rear Licence Plate LampsIncluded
Rear Reflectors / Conspicuity TapeIncluded
Step & Deck LightingIncluded (Button-Activated)
Reflective MarkingIncluded
5th Wheel TypeSAF HOLLAND FW3510TR-EL (80,000 lbs) — Lift: 500 mm (20")
5th Wheel Coupling IndicatorLight ON when kingpin engaged & locked
5th Wheel LubricationSelf-Greasing — Easy Access Nipple (Autonomous Option)
5th Wheel Relief ValveIncluded
Remote 5th Wheel ReleaseRecommended
Air Line & Electrical Connectors18 ft Spiral-Wrapped
Braided Airlines18' with Spring (replaces plastic coiled)
Double Glad Handler ConnectorIncluded — L-bend & Threaded End
Hanger Hook / Hose HangerIncluded — EZ Claw
OBD InterfaceRP1226 Connectors · J1939 CAN Bus Connectivity
Smart Drive Dash CamIncluded
Remote DiagnosticsIncluded
High Voltage DisconnectIncluded
High Voltage Wire ColorOrange
Cooling System WarrantyBTMS Warranty Included
DOT ComplianceANSI B56-1 (OSHA) Off-Road · FMVSS Safety Items Adapted
Decal InstallationIncluded
License Plate InstallationIncluded
Engine Sound SimulatorFMVSS 141
Forward Collision WarningIncluded
HornElectric Horn
Reverse Speed Limit5 mph
Handrail (3-Point Contact)Included
Warning TriangleIncluded
Safety Devices
- In-cabin emergency stop button
- 12V cutout switch under driver seat
- Reflective zebra tape around vehicle
- Anti-slip grip tape on steps & walkways
- Backup alarm
- In-cabin fire extinguisher
- In-cabin emergency hammer
- 4 cameras for driver assistance
- Clearance reflectors
Step ConfigurationTwo Steps — RH Side, Low to Ground (<8")
Drive by WireAutonomous-Ready — Robotized Steering, Braking & Acceleration · AD CAN Layer for 3rd Party AD Software
Autonomous Capability
- Localization & Mapping
- Dynamic Obstacle Detection & Avoidance
- Path & Route Planning
- Tele-Operation
- V2X Communications
AD Software / HW Options
- Fleet Orchestration Software (YMS Integration)
- Robotic Arm for Trailer Coupling / Decoupling
- Autonomous Charging Integration
No Risk Onsite Pilot Program
Test our fleet onsite for 60-120 days before scaling.
We help you determine configurations best suited for your operation.
Fleet Assessment
Infrastructure Planning
Pilot Deployment
Performance Monitoring
Fleet Scaling

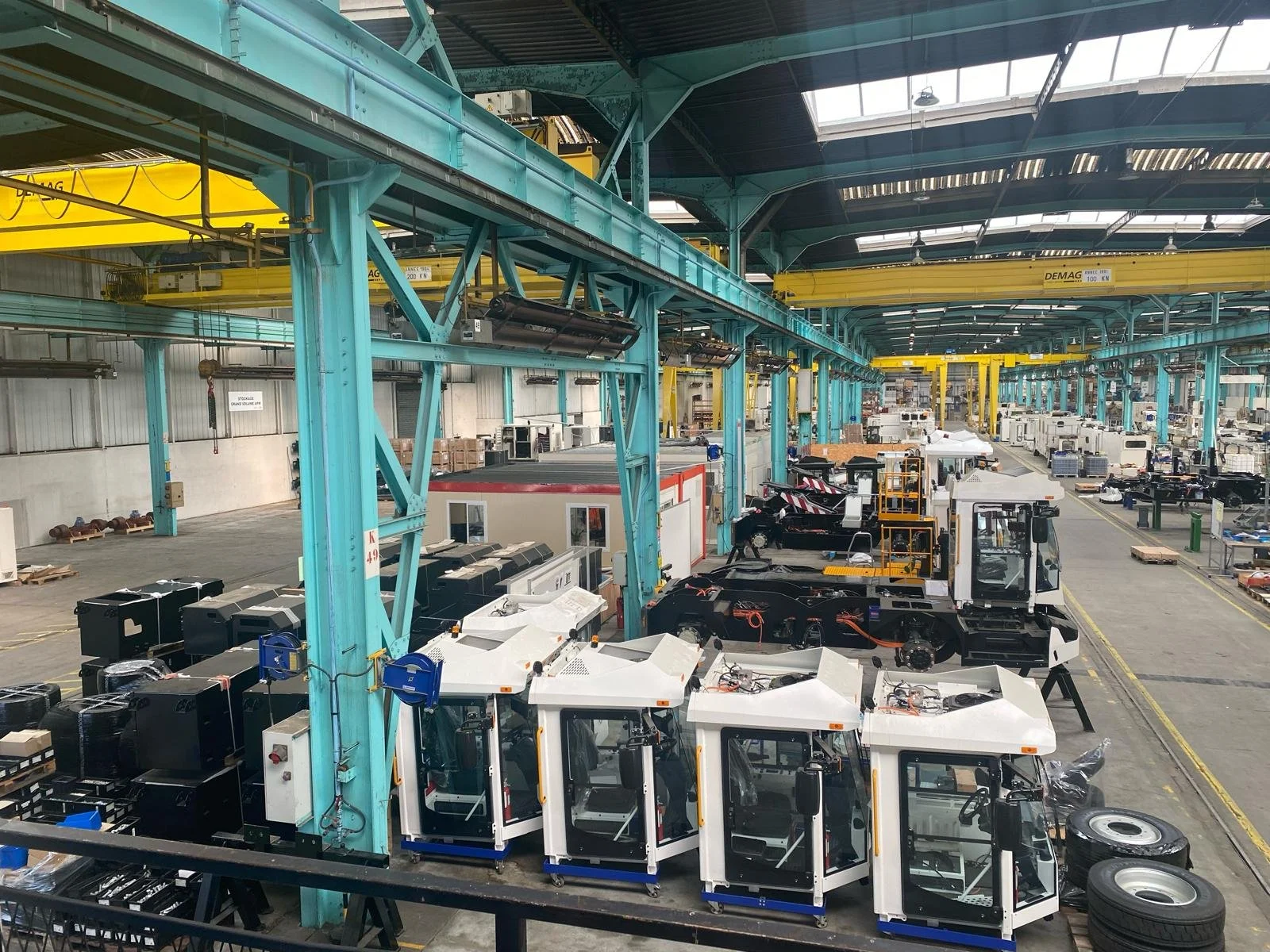

U.S Manufacturing
BlueTT has serves the United States and North America. U.S.-based manufacturing is planned for 2027, marking the next step in scaling production and bringing advanced electric solutions closer to customers.
